Model NO.: SBT-SHP4-CNC-3000A/B
-
Export Markets: Global
Additional Info
-
Trademark: Saint Best
-
Packing: Wooden
-
Standard: CE
-
Origin: China
-
HS Code: 84778000
-
Production Capacity: 1000/Year
Product Description
Function:
One frame can be finished by one working cycle
Features:
The common profile fixture with the machine can meet the processing requirements of different height profiles.
Special profile fixture is easy to be changed, which can ensure the high corner strength and later good cleaning effect.
Imported whole set linear bearing system can keep the stable running and good craftsmanship.
Special Know-How technique ensures stable welding size and increasing corner strength.
Parameter:
Air Pressure: 0.5MPa~0.8MPa
Air Consumption: 80L/min
Input Voltage: 380V/220V 50Hz
Input Power: 7KW
Welding Height: 25mm~160mm
Max. Welding Width: 120mm
Welding Range: 350mmx350mm~1800mmx3000mm
Overall Dimension: 5000mmx2000mmx2720mm
Weight: 2650kg

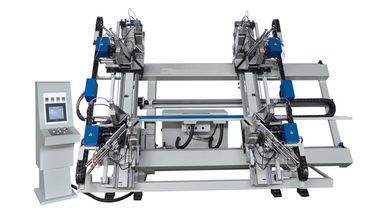

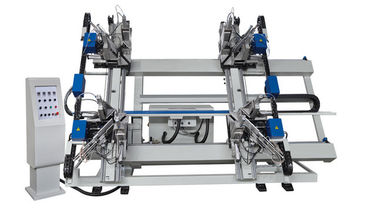

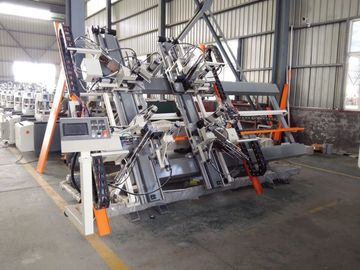

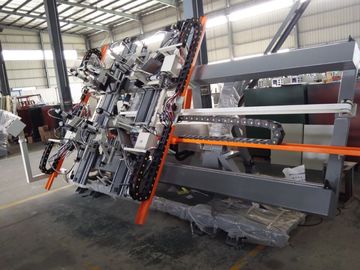

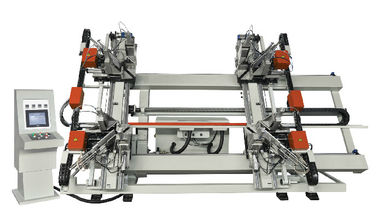

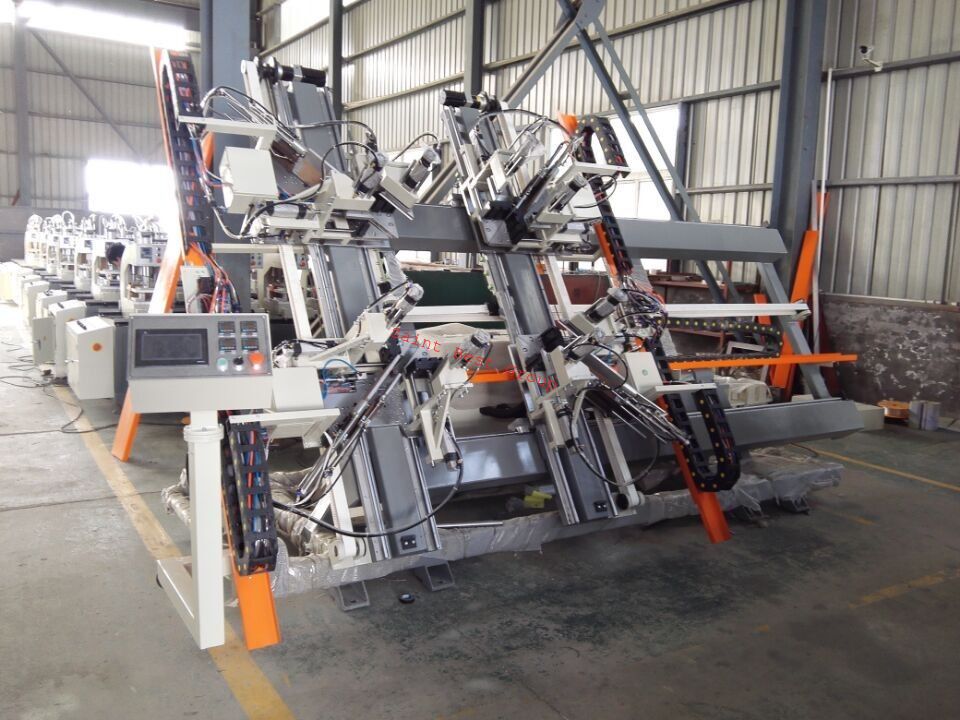

SBT-SHP4-CNC-3000B CNC Vertical Four-point Welding Machine
◎ Automatic welding head positioning.
◎ The machine heads automatically back to the original position, easy operation.
◎ Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
◎ Size tolerance compensation is available to increase welding precision.
◎ Common profile fixture along with the machine can meet various height profiles' processing requirement.
◎ The length located by ball screw makes high accuracy.
◎ Back plates are convenient to change, when connecting joints, the two clamping boards feed symmetrically results parallel welding, increasing the welding strength.
◎ Imported computer control system, easy operation and high stability.
|
Technical Parameter:
|
|
|
Model
|
SBT-SHP4-CNC-3000B
|
|
Input voltage
|
380V 50Hz
|
|
Input power
|
10Kw
|
|
Air pressure
|
0.6~0.8MPa
|
|
Air consumption
|
200L/min
|
|
Welding height
|
25~150mm
|
|
Welding width
|
≤140mm
|
|
Welding range
|
400×400~1800×3000mm
|
|
Overall dimension
|
4600×2000×2600mm
|
