    Product Details:

    Place of Origin: China
    Brand Name: Saint Best
    Certification: CE/ISO etc
    Model Number: SBT-HMA98

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden Case or Customized
    Delivery Time: 5-15days
    Payment Terms: T/T,Western Union,Moneygram,Paypal
    Supply Ability: 86Sets/Month
    Contact Now
    Detailed Product Description

    Hot Melt Applicator,Hot Melt Dispenser,Hot Melt Extruder Machine,Hot Melt Machine,Hot Melt Coating Machine,Hot Melt Sealing Robot

    HOT MELT MACHINE,Hot Melt Dispenser,Hot Melt Applicator,
    Item specifics
    Certification: CEBrand Name: SAINT BESTMachine Type: Glass Coating MachinePlace of Origin: China (Mainland),ShandongModel Number: SBT-HMDB
    Specifications
    Machine Name

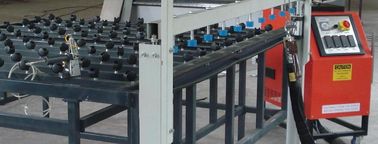

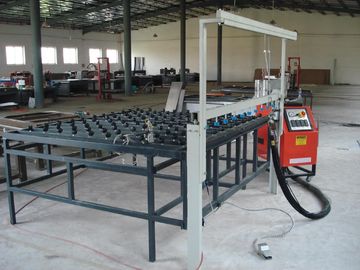

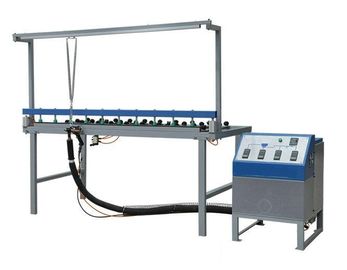

    HMD-B HOT MELT MACHINE

    General Description
    HMD-B HOT MELT MACHINE is designed for the hot melt of insulating glass with aluminum spacer. It is of the second generation of equipment with the same model. It is small and light, easy to operate and repair and has stable control over temperature. Operation can be carried out after preheating of half an hour.

    Technical Index
    Power Supply: Frequency: 50Hz
    Voltage: three-phase five-wire system 380V
    Total power: 5.5KW
    Extruding Speed: above 1000g/min
    Dimension (length × width × height): 550×500×920 (mm)
    Total Weight: 100kg

    Installation and Trial Run
    a) No special conditions are required except that the operation site is kept clean.
    b) Make sure the power be connected correctly in accordance with the requirements.
    c) Put the designated rubber block in the rubber box, set the temperature (reference degree being 150°C-170°C) and preheat it for about 30 minutes.
    d) When the set temperatures of the rubber and rubber pipe have been satisfied, triggering the rubber gun can extrude the hot melt.


    Special Explanations
    a) The extruding speed could be regulated, which is advised not to be too fast in the beginning. In view of different temperatures of different points in the hot melt when it is first extruded, a small amount of extrusion is recommended before formal extrusion is carried out.
    b) The operation should not be conducted unless the rubber pump reaches its set temperature. (Inside the machine, protective setting is designed, so the motor will not work if set temperature is not satisfied.)
    c) The fluid rubber level should be kept above the heater by adding the rubber blocks timely according to its consumption.
    d) The inclusion of foreign matter is strictly prohibited to protect the machine.
    e) After operation, leave enough rubber in the rubber box for next heating and then turn off the power.
    f) Hang the rubber gun on the slinger when it is not used.

    Note: Do not touch the gun mouth and the cover of the rubber box to avoid injury.
    HOT MELT MACHINE, Hot Melt Dispenser, Hot Melt Applicator, Hot Melt Extruder,Hot Melt Extruder Machine, Hot Melt Sealant,Hot Melt Adhesive Dispenser,Glass Coating Machine
    Payment
    TT/LC
    Delivery
    15Days
    Origin
    China
    Minimum Order
    1Set
    Packaging
    Customized
    Inspection
    CE/ISO9001
    Samples
    Charge
    Remarks
    HOT MELT MACHINE, Hot Melt Dispenser, Hot Melt Applicator, Hot Melt Extruder,Hot Melt Extruder Machine, Hot Melt Sealant,Hot Melt Adhesive Dispenser,Glass Coating Machine,HOT MELT MACHINE, Hot Melt Dispenser, Hot Melt Applicator, Hot Melt Extruder,Hot Melt Extruder Machine, Hot Melt Sealant,Hot Melt Adhesive Dispenser,Glass Coating Machine
