    Product Details:

    Place of Origin: China
    Brand Name: Saint Best
    Certification: CE/ISO etc
    Model Number: SBT-HGPL1600/1800/2000/2200/2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Customized
    Delivery Time: 15-30days
    Payment Terms: T/T
    Supply Ability: 20Sets/Month
    Contact Now
    Detailed Product Description



    Basic Info.

    Model NO.:SBT-HGPL1600/1800/2000/2200/2500

    Type:Insulating Glass Production Line
    Certification:CE, UL

    Control System:PLC
    Size:2000X10000X1000mm

    Export Markets:Global

    Additional Info.

    Trademark:Saint Best

    Packing:in Wooden Cases or as Per Your Requirement
    Standard:

    Origin:Shandong, China
    HS Code:8464901900

    Production Capacity:100 Pieces

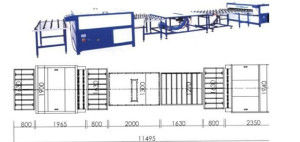

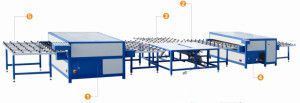

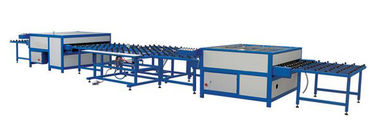

    Horizontal Glass Production Line
    1. Horizontal glass washing Machine(Model: SBT-HGW),

    2. Strip Assembly table(SBT-ATT),

    3. Glass Rolling over table(SBT-ATA),

    4. Horizontal Hot Press Machine(SBT-HRPM),





    Detail Information as below:
    Horizontal Glass Production Line (BX1600)

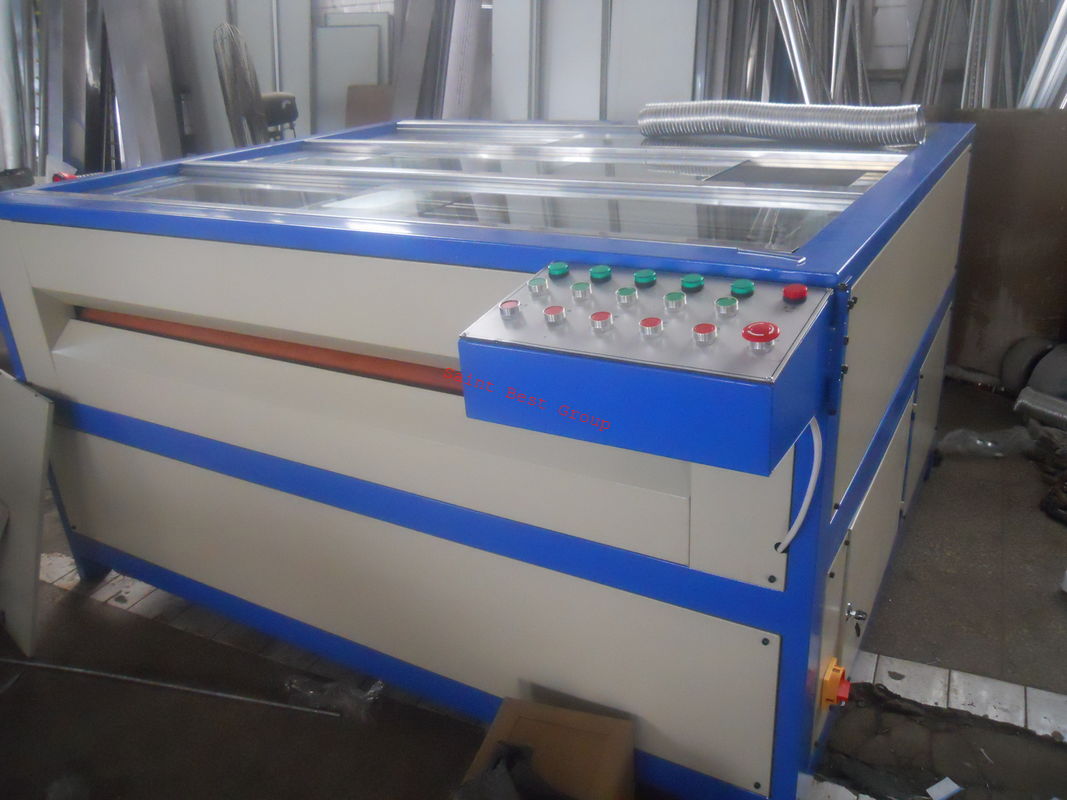

    Horizontal glass washing Machine(Model: SBT-HGW)

    It is used to wash 3-12mm and 35mm-thinner glass with the horizontal structure, it is stable to transmit; Stable performance with DELIXI contactor, push
    Button switches and pilot light. It adopts frequency stepless speed and is easy to operate as the button is concentrated on the operation table, the height of washing tank can be changed to meet the requirement of any glass thickness. Three groups of brushes assure the washing quality while two pairs of air knives assure the drying. Inspecting light is equipped to examine the glass quality








    Strip Assembly table(SBT-ATT1600)

    He machine is used to install the sealing strip of compound rubber-strip type double-glazing glass. The vacuum chuck is used for positioning and the universal-joint wheel is used to transfer glass with simple operation, precise positioning.













    Horizontal Glass Production Line (BX1600)

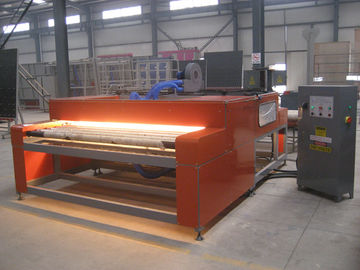

    Horizontal Hot Press Machine(Model:SBT-HRPM)



    Function and feature



    1. It adopts two rubber rollers and frequency stepless speed so the transmission speed can be changed if necessary.



    2. Temperature controlling device (8 heating pipes with 2kw power), Is used to keep the best temperature to assure the quality of the insulating glass.



    3. The rollers in the hot stove are made of materials good in lubrication and heatproof.









    Guarantee & Aftersales service:

    1)Guarantee the complete machine for 12 months, except the consumable parts.

    2) 24hour technical support by email or calling.

    3) User-friendly English manual for machine using and maintaining.





    Remarks:

    A. Pkg: for long time transportation
    B. Terms: Freight On Board (FOB Qingdao/Dalian)
    C. From Qingdao, China
    D. Delivery Time: During 15 Days After We Receive Your First Payment.
    E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
    machine.
    F. Guarantee period: 1 year from the date of customer receiving the machines.
