Place of Origin: | China |
Brand Name: | Saint Best |
Certification: | CE/ISO etc |
Model Number: | SBT-VACPS4116 |
Minimum Order Quantity: | 1Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case or Customized |
Delivery Time: | 15-30days |
Payment Terms: | T/T |
Supply Ability: | 20Sets/Month |

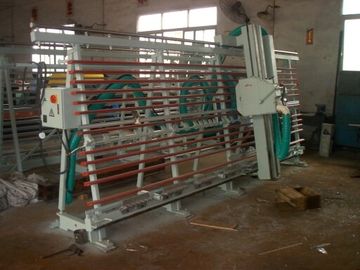

Vertical Aluminum Composite Panel Saw-VACPS4116
The machine adopts special imported hard alloy blades and tools, featuring superb high-speed balance performance, high processing precision and durability, saving time and energy. Blade grooving depth can be adjusted from 0 to 8mm. It is capable of grooving and cutting, capable of horizontal and vertical cutting, and with safety positioning. The overall machine is of superior rigidity, with stable cutting, without vibration traces.
MAIN TECHNIQUE PARAMETER
1. |
Cutting dimension (LxW) |
4100x1600mm |
2. |
Blade dimension (for grooving) |
Φ250×Φ30×15mm |
3. |
Blade dimension (for cutting) |
Φ250×Φ30×3mm |
4. |
Motor power |
3Kw |
5. |
Motor rotation speed |
2840 rpm |
6. |
Diagonal deflection |
≤2000mm, deflection≤1.5mm >2000mm, deflection≤2.5mm |
7. |
Overall dimension (L×W×H) |
5200×1500×2300mm |
8. |
Packing dimension (main lather) |
5500×1000×2600mm |
9. |
Packing dimension (motor) |
2700×1200×1000mm |
10. |
Weight |
1900Kg |
