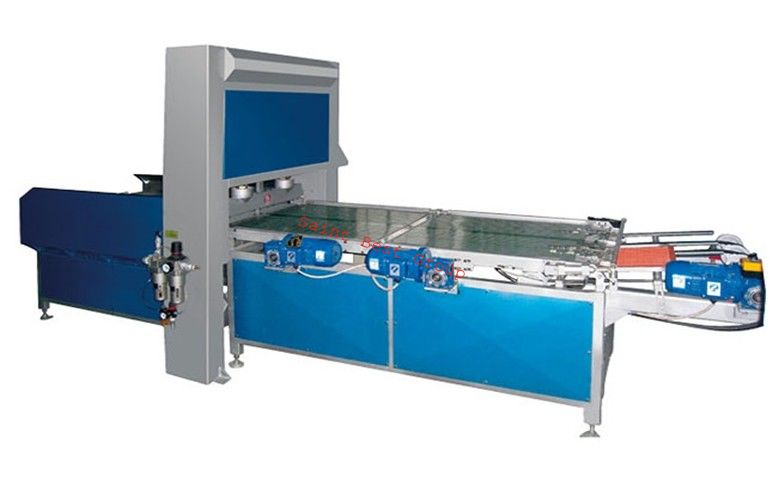

SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine

SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine

    • SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine
    • SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine
    • SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine
    • SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine
  • SBT-BP600 Automatic Ram Mosaic Glass Breaking Machine

    Product Details:

    Place of Origin: China
    Brand Name: Saint Best
    Certification: Valid
    Model Number: SBT-BP600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Negotiable
    Packaging Details: Customized
    Delivery Time: 15-30days
    Payment Terms: T/T;Western Union;Paypal;Moneygram
    Supply Ability: 28Sets/Month
    Contact Now
    Detailed Product Description

    Automatic Mosaic Glass Breaking Machine with Automatic Typesetting

    SBT-BP -600 Automatic Mosaic Glass Breaking Machine has advanced technology,low carbon,environmental friendly,high efficiency,easy to operate and can operate many machines at the same time by one people etc advantages;It had get rid of the shortcomings of traditional one people one machine and braking mosaic glasses one by one etc low efficiency.

     1 High Efficiency and stable production (40-80M2/8 Hours);
     2 Easy to operate,all glass particle surfaces very smooth,lower breakage;
     3 Breaking Thickness:3-12mm;
     4 Min Mosaic Glass Breaking Size:15mmX15mm;
     5 Small,fast,and flexible;Take small space,easy to operate;

     6 It can adjust the breaking size at anytime;
     7 SIEMENS PLC Control System and Japan PANASONIC Servo Driver can grantee the product quality;
     8 All parameters displayed on Control Panel,it is easy to browse and change;

     9 It can automatic typesetting;

    Parameters:

    Finished Glass Size

    Glass Size(MM)

    Time/Breaking

    Pcs/Breaking

    M2/8 Hours

    15*15*8

    488*457*8

    1Minuts 40Seconds

    2025Pcs

    69M2

    960Pcs

    74M2

    23*23*8

    488*457*8

    1Minuts

    437Pcs

    110M2

    25*25*8

    488*457*8

    342Pcs

    102M2

    48*48*8

    488*457*8

    20 Seconds

    90Pcs

    497M2

    Oversize(LxWxH)

    Thickness

    Input Speed

    Weight

    Power

    Air Pressure

    Voltage

    3500×1800×1800mm

    3-12mm

    40-600 M2/Day

    1600kg

    2Kw

    0.4-0.8Pa

    380V 60Hz

    Specifications

    • Model:SBT-BP-600
    • Original:China
    • Brand:Saint Best
    • Package:Customized
    • Payment Terms:TT
    • Lead Time:15-20Days
    • Lead Port:Guangzhou/Qingdao/Shanghai

    Automatic Mosaic Glass Breaking Machine with Automatic TypesettingAutomatic Mosaic Glass Breaking MachineAutomatic Mosaic Glass Cutter,Automatic Mosaic Glass Cutting MachineAutomatic Mosaic Glass Ram Breaker without TypesettingAutomatic Mosaic Glass Ram Breaking Machine with Automatic TypesettingAutomatic Mosaic Glass Ram Breaking Machine without TypesettingAutomatic Mosaic Glass Ram Cutter,Automatic Mosaic Glass Ram Cutter without TypesettingAutomatic Mosaic Glass Ram Cutting Machine without TypesettingAutomatic Mosaic Glass Roller Breaking Machine with Automatic TypesettingAutomatic Mosaic Glass Roller Breaker without TypesettingAutomatic Mosaic Glass Roller Breaking Machine without TypesettingAutomatic Mosaic Glass Roller CutterAutomatic Mosaic Glass Roller Cutter without Typesetting,Automatic Mosaic Glass Roller Cutting Machine without TypesettingMosaic Glass Breaking MachineMosaic Glass CutterMosaic Glass Cutting MachineMosaic Glass Ram Breaker without TypesettingMosaic Glass Ram Breaking Machine without TypesettingMosaic Glass Ram Cutter,Mosaic Glass Ram Cutter without TypesettingMosaic Glass Ram Cutting Machine without TypesettingMosaic Glass Roller Breaker without TypesettingMosaic Glass Roller Breaking Machine without TypesettingMosaic Glass Roller CutterMosaic Glass Roller Cutter without TypesettingMosaic Glass Roller Cutting Machine without Typesetting
