Straight Line Glass Bevel Edger

Straight Line Glass Bevel Edger

    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
    • Straight Line Glass Bevel Edger
  • Straight Line Glass Bevel Edger

    Product Details:

    Place of Origin: China
    Brand Name: Saint Best
    Certification: CE/ISO etc

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Negotiable
    Packaging Details: Customized
    Delivery Time: 30days
    Payment Terms: T/T
    Supply Ability: 48Sets/Month
    Contact Now
    Detailed Product Description

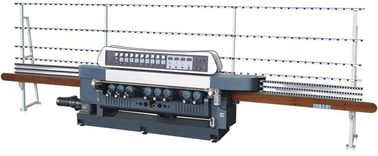

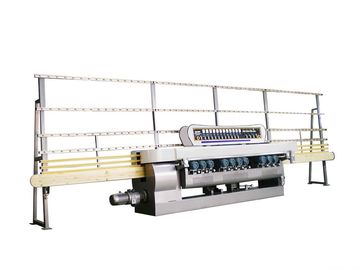

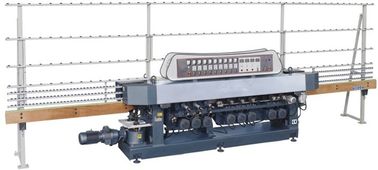

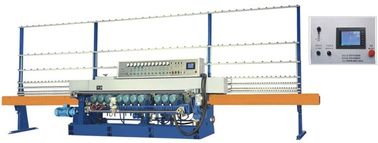

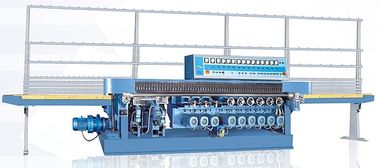

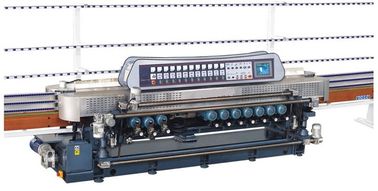

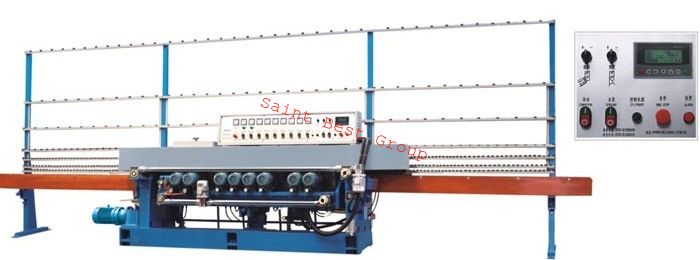

    BXM261B
    The BXM261B is a new model machine for processing straight line bevel edge with round bottom, the main character is that its spindles can work directly by motors, capable of satisfying for economizing on energy, high efficiency and service easy.
    It adopts pneumatical polishing, the chamfering spindles can move forward and backward wholely, and the angles can be adjusted wholely. Stable water tank can get the best water proof purpose.
    With a digital screen, glass thickness, bevel angle, bevel width, bevel device, conveyor speed, and total processing amount can be shown on it, easily adjust the machine to suit your requests against these datas. Rough grinding, fine grinding and polishing can be finished in one time


    Straight Line Glass Bevel EdgerMajor Technical Specification

    Speed 0.6-3.5(m/min) Beveling Angle 3o-20o
    Beveling Width 0-35(mm) Glass Thickness 3-20(mm)
    Max. Glass 3000x3000(mm) Min. Glass 40x40(mm)
    Total Power 23.25(Kw) Weight 4410(kg)
    Dimension 7.9x1.2x2.6(M) Height of worktable 850(mm)

    Straight Line Glass Bevel Edger

    Straight Line Glass Bevel Edger
