    Product Details:

    Place of Origin: CHINA
    Brand Name: Saint Best
    Certification: CE

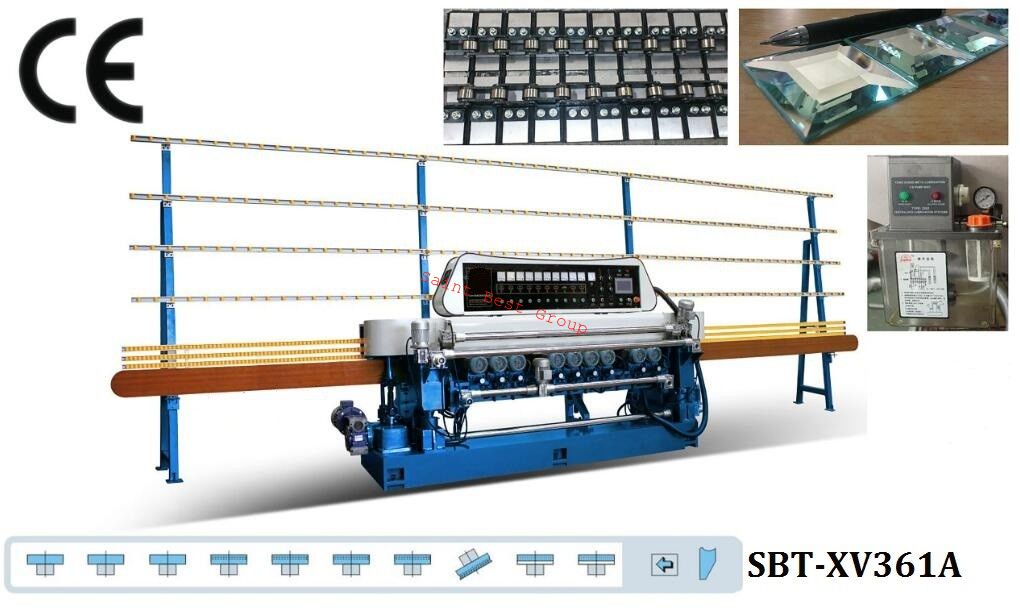

    Model Number: SBT-XV361A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set Straight-Line Glass Beveling Machine,Glass Beveling Machine
    Price: Negotiable;Glass straight-line beveling machine
    Packaging Details: Seaworthy or customized
    Delivery Time: 30~40days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 18Sets/Month Glass Straight-Line Beveller
    Contact Now
    Detailed Product Description
    Glass Beveling Machine: Glass Straight-Line Beveling Machine Straight-Line Glass Beveling Machine: Glass Grinding&Beveling Machine
    10 Spindles Glass Straight-Line Beveling Machine: Glass Beveling&Polishing Machine Glass Straight-Line Beveller: Straight-Line Glass Beveling Machine
    Straight-Line Glass Beveler: 10 Spindles Glass Straight-Line Beveling Machine 10 Spindles Straight-Line Glass Beveling Machine: 9 Spindles Glass Straight-Line Beveling Machine
    Straight Line Beveling Machine: 9 Spindles Straight-Line Glass Beveling Machine

    10 Spindles Glass Straight-Line Beveling Machine,Glass straight line beveling machine,Glass Beveling Machine

    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    1.Technical Parameter
    1.1 Min.processing size: 25*25mm/Max.Processing Size:2500mm*2500mm.
    1.2 Processing thickness: 3~19mm.
    1.3 Processing speed: 0.8~6.0m/min.
    1.4 Max.width of bevel: 45mm.
    1.5 Bevel degree: 3°~45°.
    1.6 Weight: 4800kg.
    1.7 Power: 24.5kw.
    1.8 Dimension Size: 7000mm×1300mm × 2500mm(L*W*H)
    1.9 Packing Size:4200mm*950mm*1600mm(L*W*H)

    2.General Description
    2.1 SBT-XV361A straight line beveling machine are used for grinding bevel and bottom edge of glass with different size and thickness.
    2.2 Rough grinding, fine grinding, polishing of beveling edge and grinding of bottom edge can be completed in one time.
    2.3 It is easy to adjust the feeding of motor in the all and the one and beveling angle while glass thickness is being changed.
    2.4 Same thickness of glass sheet can be process continually. The brightness of finished surface will be almost the same as glass itself.
    2.5
    The processing speed is adjustable with a 2.2kw stepless motor which offers a wide range of speed selection:
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    2.6 Input and output conveyor adopt timing belt which can improve the transmission precision.
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    2.7 This machine can do 45 degree miter angle:
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

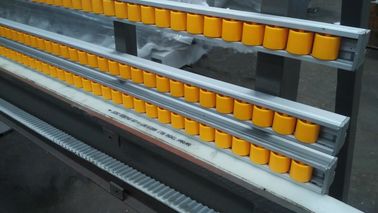

    2.8 Front beam can be adjusted up and down which is suitable for processing small pieces of glass.
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    2.9 All of the spindles are ABB Germany motors.
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    2.10 Stainless Water Tank(One For Cerium Oxider Polishing ,One For water cleaning):
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

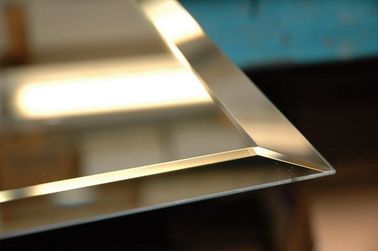

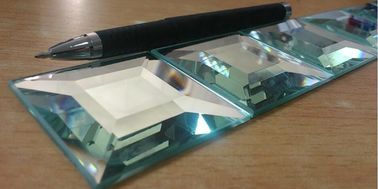

    3.Glass Samples
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine
    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine

    4.Wheels position: (From input to output end) ←
    The wheel disposal of SBT-XV361A Glass straight-line beveling machine:

    10 Motors Straight-Line Glass Beveling Machine,Straight Line Glass Beveling Machine,Glass Beveling Machine


    NO.10 NO.9 NO.8 NO.7 NO.6 NO.5 NO.4 NO.3 NO.2 NO.1
    Polishing Polishing Polishing Semi-Fine Polishing
    wheel
    Semi-Fine
    Grinding Wheel
    Semi-Fine
    Grinding
    Wheel
    Semi-Fine Grinding
    Wheel
    Grinding
    Hemline
    Wheel
    Semi-Rough Grinding
    Wheel
    Rough Grinding
    Wheel
    Wool
    Felt wheel
    Wool
    Felt wheel
    Wool
    Felt wheel
    700mesh
    Resin
    wheel
    500mesh
    Resin
    wheel
    320mesh
    Resin
    wheel
    240mesh
    Resin
    wheel
    Round
    Diamond
    Wheel
    Diamond Wheel Diamond wheel
    Machine Processing
