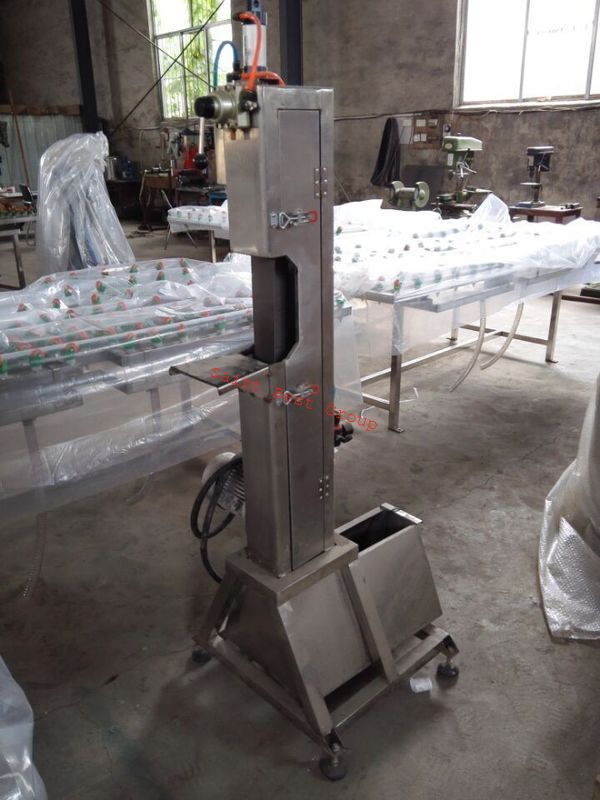

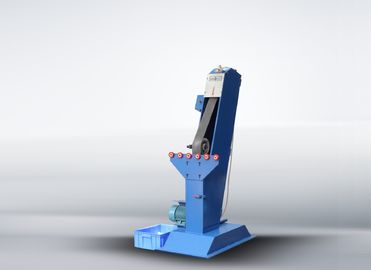

Single Belt Glass Chamfering Machine SBT-EM80
Main Function&Features:
1 Safe Chamfering after glass to be edged four sides.
2 Low energy consumption with only less than 1KW/H.
3 No dust during operation because it is equipped with continuous water supply pump and stainless steel water tank.
4 It has rare chance to break the glass edge.Lower breakage rate when the glass is toughened.
5 No deviation on the belt when it works and the belt is easy to be replaced.
6 The chamfering speed is very fast,high efficiency.
Main Technical Parameter:
Power Suppy:220V 50HZ/380V 3P 50HZ
Output Power:0.75KW
Processed Depth:≥1.5mm
Min Glass Size:80x80mm
Belt Speed:14m/s

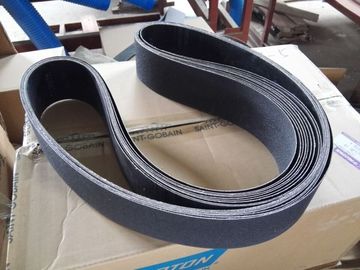

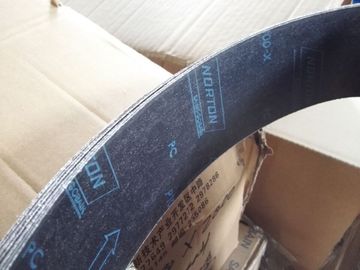

Belt Size:L2000xW80mmx100P
Machine Size:L600xW500xH1650mm
Weight:80Kgs
SBT-EM80 water spray type and single abrasive belt chamfering machine (For picture frame glass chamfering)
Main Function and features:
1. Safe chamfering after glass to be edged four sides.
2 Low energy consumption with only less than 1KW/H
3. No dust during operation because it is equipped with continuous water supply pump and stainless steel water tank.
4. It has rare chance to break the glass edge.
Lower breakage rate when the glass is toughened
5. No deviation on the belt when it works and the belt is easy to be replaced,
6. The chamfering speed is very fast, high efficiency, low cost.
Main technical parameters
1. Power Source AC380V 50Hz
2. Output Power 0.75KW
3. Processed glass thickness ≥1.5mm
4. Belt speed 14m/s
5. Belt size L2000 * W80mm *100P
6. Dimension L600*W500*H1650mm
7. Machine weight ≈80KG
