Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting

Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting

    • Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting
    • Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting
    • Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting
    • Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting
  • Automatic Ram Mosaic Glass Breaking Machine with automatic Typesetting

    Product Details:

    Place of Origin: China
    Brand Name: Saint Best
    Certification: Valid
    Model Number: SBT-BP600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Negotiable
    Packaging Details: Customized
    Delivery Time: 15-30days
    Payment Terms: T/T;Western Union;Paypal;Moneygram
    Supply Ability: 28Sets/Month
    Contact Now
    Detailed Product Description

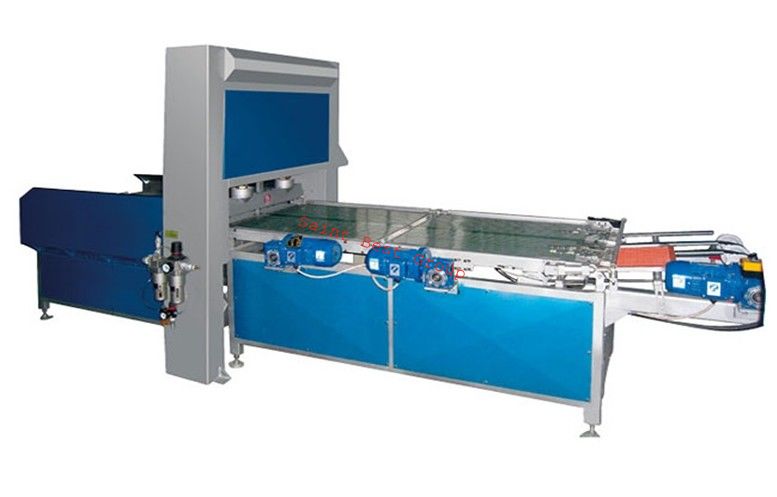

    Automatic Mosaic Glass Breaking Machine with Automatic Typesetting

    SBT-BP -600 Automatic Mosaic Glass Breaking Machine has advanced technology,low carbon,environmental friendly,high efficiency,easy to operate and can operate many machines at the same time by one people etc advantages;It had get rid of the shortcomings of traditional one people one machine and braking mosaic glasses one by one etc low efficiency.

     1 High Efficiency and stable production (40-80M2/8 Hours);
     2 Easy to operate,all glass particle surfaces very smooth,lower breakage;
     3 Breaking Thickness:3-12mm;
     4 Min Mosaic Glass Breaking Size:15mmX15mm;
     5 Small,fast,and flexible;Take small space,easy to operate;

     6 It can adjust the breaking size at anytime;
     7 SIEMENS PLC Control System and Japan PANASONIC Servo Driver can grantee the product quality;
     8 All parameters displayed on Control Panel,it is easy to browse and change;

     9 It can automatic typesetting;

    Parameters:

    Finished Glass Size

    Glass Size(MM)

    Time/Breaking

    Pcs/Breaking

    M2/8 Hours

    15*15*8

    488*457*8

    1Minuts 40Seconds

    2025Pcs

    69M2

    960Pcs

    74M2

    23*23*8

    488*457*8

    1Minuts

    437Pcs

    110M2

    25*25*8

    488*457*8

    342Pcs

    102M2

    48*48*8

    488*457*8

    20 Seconds

    90Pcs

    497M2

    Oversize(LxWxH)

    Thickness

    Input Speed

    Weight

    Power

    Air Pressure

    Voltage

    3500×1800×1800mm

    3-12mm

    40-600 M2/Day

    1600kg

    2Kw

    0.4-0.8Pa

    380V 60Hz

    Specifications

    • Model:SBT-BP-600
    • Original:China
    • Brand:Saint Best
    • Package:Customized
    • Payment Terms:TT
    • Lead Time:15-20Days
    • Lead Port:Guangzhou/Qingdao/Shanghai
