Home ProductsHorizontal Insulating Glass/Double Glazed Glass Machine

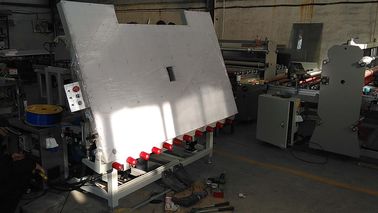

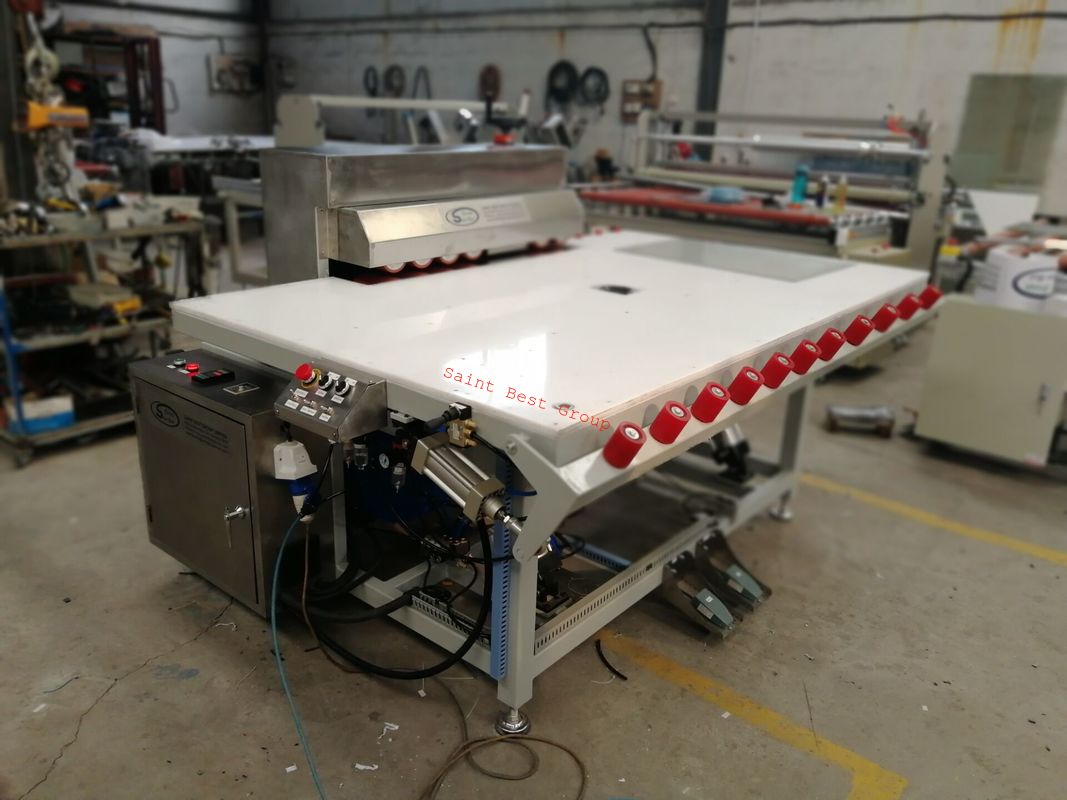

Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

    • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller
    • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller
    • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller
    • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller
    • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller
  • Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

    Product Details:

    Place of Origin: CHINA
    Brand Name: SAINT BEST
    Certification: VALID
    Model Number: SBT-SSHRP98S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Single Side Heated Roller Press
    Price: Competitive Price Single Side Heat Press Table for Insulating Glass.Heated Roller Press With Tilting&Suckers,Hot Roller Press Table for Insulating Glass,Single Side Heated Roller Press Machine.
    Packaging Details: Wooden case or customized
    Delivery Time: 15~25days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10 Sets/Month Tilting Single Side Heated Roller Press With Suckers,Single Side Hot Roller Press Table to America
    Contact Now
    Detailed Product Description
    Heated Roller Press With Tilting&Suckers: Tilting Single Side Heated Roller Press With Suckers Hot Roller Press Table: Single Side Heated Roller Press Table With Air Float&Tilting
    Heat Roller Press For Double Glazing: Single Side Double Glazing Equipment Heated Roller Press Table With Air Float & Tilting Application: Insulating Glass Single Side Heated Roller Press
    Max IGU Size: 1000mm Glass Thicknes: 40mm
    Single Side Heat Press Table: Double Glazing Single Side Heated Roller Press Machine Rollers: 6 Pairs

    Tilting Single Side Heated Roller Press With Suckers,Heated Roller Press With Tilting&Suckers

    Single Side Heated Roller Press Table with Air Float&Tilting,Heat Roller Press for Double Glazing,Single Side Double Glazing Equipment Heated Roller Press Table With Air Float & Tilting

    Quick Details

    • Place of Origin: China (Mainland)
    • Brand Name: SAINT BEST
    • Model Number: SBT-SSHRP98S
    • After-sales Service Provided: Engineers available to service machinery overseas
    • Voltage: 3P 380V 50Hz/ 3P 220V 60HZ/Single Phase 220V 60HZ
    • Power: 10kw
    • Max. Glass Width:1000mm
    • IGU thickness: 40mm

    Packaging & Delivery

    Packaging Details: Standard Export Package or according to customers' demands.
    Delivery Detail: 20days


    I. Working Principle

    1. Driven system

    A motor equipped with a speed controller is applied in the complete appliance, and the speed can be

    adjusted by chain diver.

    2. Heating system:

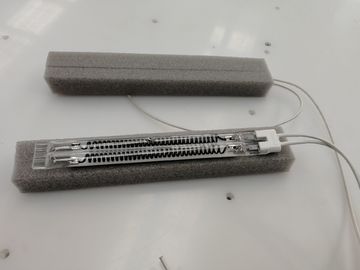

    6 pairs far infrared Carbon Firbe Heating Lamps are used in this machine to heat the glass from the directions of both the top and the bottom, and it is possible to adjust the temperature automatically.

    3. Rolling system

    There are six pairs of high-temperature resistance rubber roller to press and laminate the glass

    after the pieces are put together.An adjusting device with numeric display is deployed to show the

    thickness.The space between the upper and lower rubber rollers is adjusted with the

    maximum laminating thickness is 40mm

    Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

    II. Technical Parameters

    Maximum breadth of the laminating glass ≤1000mm
    Minimum size of the laminating glass 350×350mm
    Maximum transmission speed 4.5m/min
    Thickness of the hollow glass 10-40mm
    Maximum rising distance of the upper rubber roll 40mm
    Motor power 0.75KW
    Speed regulation range of the machine 5-500hz
    Heating power 3.6KW
    Automatic temperature control Max.300℃
    Gross power 4.35 KW
    Maximum overall dimensions 2100×1600×1400mm
    Weight 260Kg
    Power 3P 380V 50Hz/ 3P 220V 60HZ/Single Phase 220V 60HZ
    Working air pressure 0.4-0.6Mpa

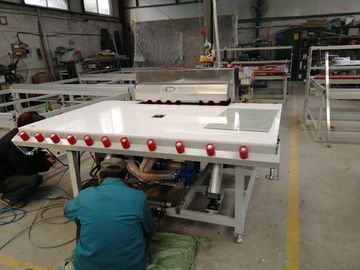

    Machine Processing


    SAINT BEST GROUP selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Single Side Heated Roller Press,Heated Roller Press for IGU,Single Side Cold Roller Press Table delivery to Mexico,Heat Roller Press for Double Glazing,Single Side Heat Press Table delivery to Mexico;Single Side Heat Press Table for Insulating Glass.Heated Roller Press With Tilting&Suckers,Hot Roller Press Table for Insulating Glass,Single Side Heated Roller Press Machine.

    Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

    Quality Control

    SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

    After machine production finished, the products will be tested in professional ways make sure its performance.Tilting Single Side Heated Roller Press With Suckers,Single Side Hot Roller Press Table to America,Tilting Single Side Heated Roller Press With Suckers,Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller Press,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Single Side Heated Roller Press,Heated Roller Press for IGU,Single Side Cold Roller Press Table delivery to Mexico,Heat Roller Press for Double Glazing,Single Side Heat Press Table delivery to Mexico;Single Side Heat Press Table for Insulating Glass,Single Side Roller Press Machine for Aluminum Spacer,Duraseal Spacer&Super Spacer;Single Side Cold Roller Press Machine,Cold Roller Press Machine for Aluminum Spacer Insulating Glass,Super Spacer Double Glazing Press Table,Cold Roller Press Machine for Double Glazing,Cold Roller Press Machine for Insulating Glass,Cold Roller Press Machine for Double Glazed Unit,Cold Roller Press Machine for Insulated Glass Unit.



    Packaging & Shipping
    Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller

    SAINT BEST GROUP produce high quality machines, also pay attention to package.

    The machines will be packed with steel pallet and standard export wooden case,

    to make sure customer will receive the machines they ordered Intact.Heated Roller Press With Tilting&Suckers,Hot Roller Press Table for Insulating Glass,Tilting Single Side Heated Roller Press With Suckers,Single Side Hot Roller Press Table,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Heated Roller Press,Single Side Heated Roller Press for Warm Edge Spacer with Tilting Table,Single Side Heated Roller Press,Heated Roller Press for IGU,Single Side Cold Roller Press Table,Insulating Glass Cold Roller Press,Double Glazing Cold Roller Press,Insulating Glass Roller Press Machine,Double Glazing Roller Press Machine,Mini Insulating Glass Roller Press Machine,Mini Double Glazing Roller Press Machine,Single Side Insulating Glass Roller Press Machine.



    Services



    The engineer is available to travel aboard, help the installation, maintenance and training staff.



    By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.

    We always looking for long term cooperation, not one time deal.

    High Speed Vertical Insulating Glass Machine , Double Glazing Machinery

    Payment Terms :

    ♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

    ♦ Western Union or Paypal



    A,12month warranty

    B,1%-2% spare parts

    C, OEM&ODM are welcomed

    D,Trail orders are available

    Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

    By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Single Side Double Glazing Roller Press Machine,Single Side Heated Roller Press for Warm Edge Spacer,Single Side Heated Roller Press Machine for Warm Edge Spacer,Hot Roller Press Machine, Hot Roller Press, Heated Roller Press, Heated Roller Press Machine, Cold Roller Press Machine, Cold Roller Press, Thermo-compressor, Hot Roller Laminator,Heated Roller Laminator, Single Hot Roller Press Machine, Single Side Roller Press, Heated Roller Press for Insulating Glass Units, Hot Roller Press for Insulating Glass Units, Heated Roller Laminator for IG Units, Single Side Hot Roller Press Machine for Insulating Glass, Single Side Hot Roller Press Machine, Single Side Hot Roller Press, Hot Roller Press, Hot Roller Press Machine for IGU, Hot Roller Press Machine for DGU, Hot Roller Press Machine for Warm Edge Spacer, Hot Roller Press for Flexible Spacer, Hot Roller Press Machine for Rubber Spacer, Hot Roller Press for Butyl Tape, Hot Roller Press Machine for Rubber Spacer.



    Saint Best Group always looking for long term cooperaion, not one time deal

    Our Advantage:

    Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Hot Roller Press for Butyl Spacer, Single Side Heat Roller Press Machine for Insulating Glass, Single Side Heat Roller Press Machine, Single Side Heat Roller Press, Heat Roller Press, Heat Roller Press Machine for IGU, Heat Roller Press Machine for DGU, Heat Roller Press Machine for Warm Edge Spacer, Heat Roller Press for Flexible Spacer, Heat Roller Press Machine for Rubber Spacer, Heat Roller Press for Butyl Tape,Heat Roller Press Machine for Rubber Spacer, Heat Roller Press for Butyl Spacer, Mini Heat Roller Press Machine for IGU, Mini Heat Roller Press Machine for DGU, Mini Heat Roller Press Machine for Warm Edge Spacer, Mini Heat Roller Press for Flexible Spacer, Mini Heat Roller Press Machine for Rubber Spacer, Mini Heat Roller Press for Butyl Tape, Mini Heat Roller Press Machine for Rubber Spacer.



    If your questions are not answered here,feel free to Contact Us.





    High Speed Vertical Insulating Glass Machine , Double Glazing MachineryHigh Speed Vertical Insulating Glass Machine , Double Glazing Machinery
